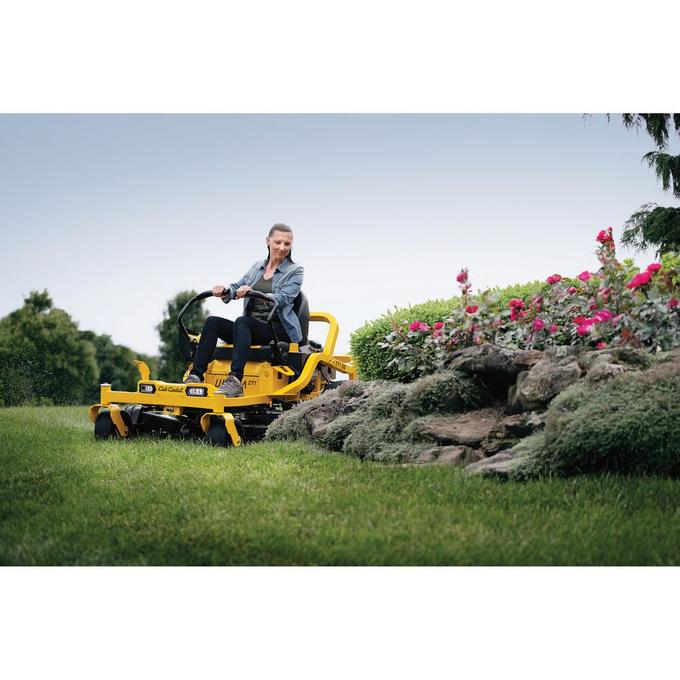

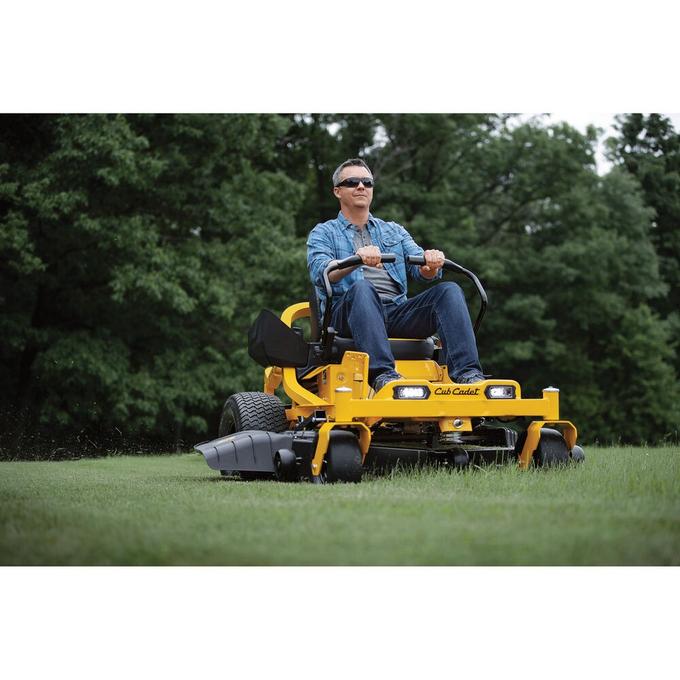

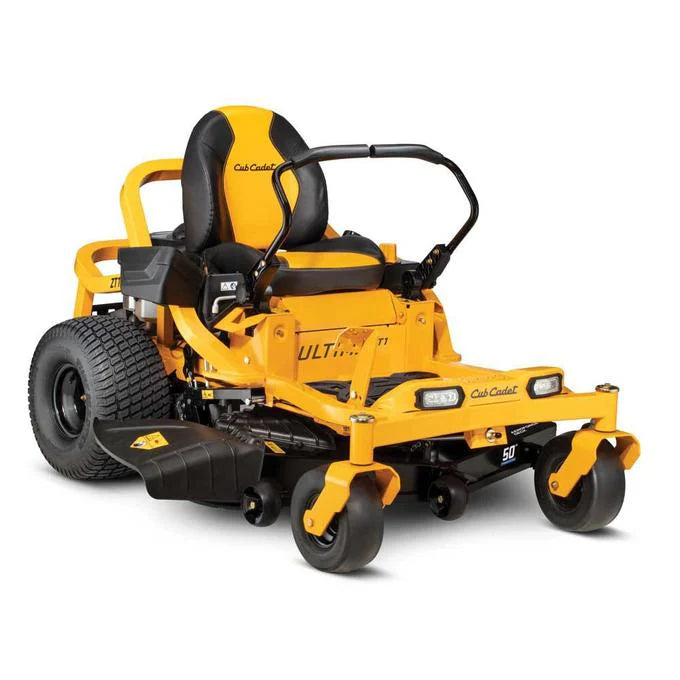

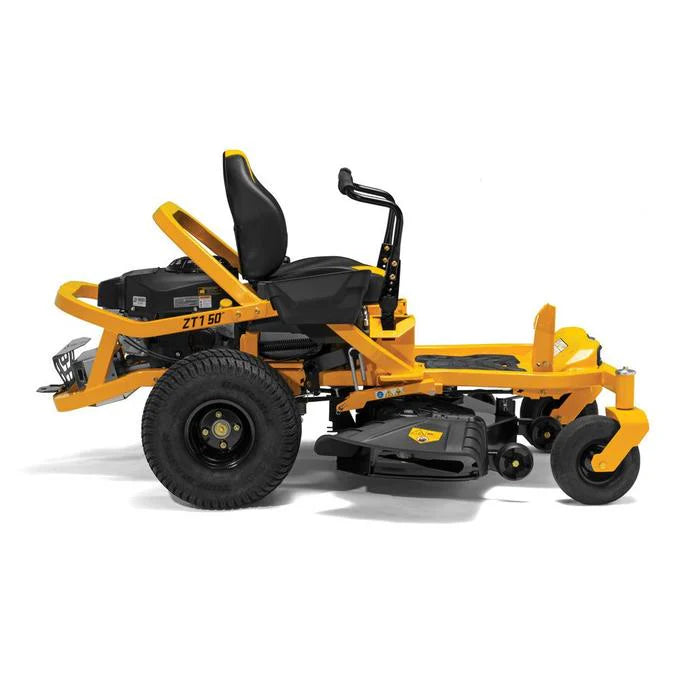

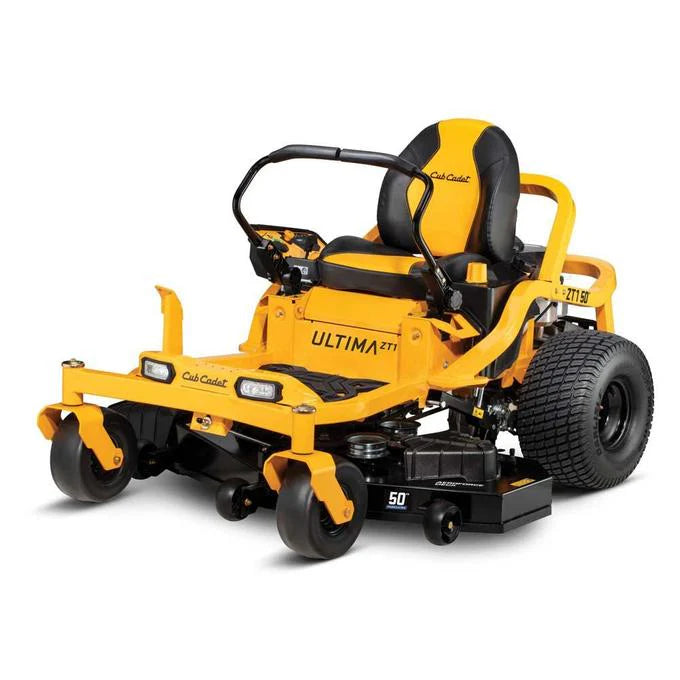

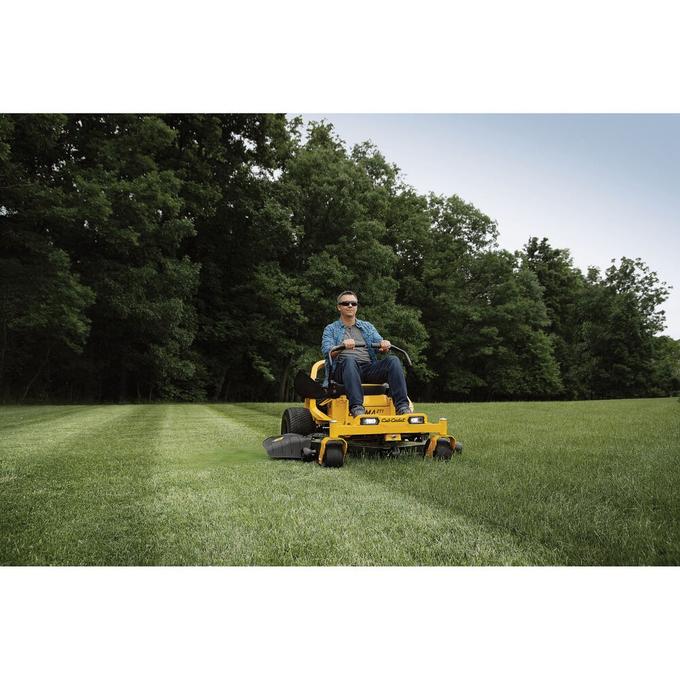

Cub Cadet® Ultima Series ZT1 50 Zero-Turn Lawn Mower
The Cub Cadet® Ultima Series ZT1 50 is a 50-inch zero-turn mower featuring a 23 HP Kawasaki FR691V twin-cylinder OHV engine. It is engineered with an AeroForce™ fabricated deck to provide a high-quality cut with fewer clumps and an even finish. Dual hydrostatic transmissions offer quick ground speeds, giving your yard a professional, clean look. The mower's durable 2" x 2" tubular steel frame includes a full e-coated corrosion defense system to protect against wear and tear.
Key Features
- Engine: Premium 23 HP Kawasaki FR691V twin-cylinder OHV for commercial-grade power.
- Transmission: Dual hydrostatic for quick and effortless 7 MPH forward and 3.5 MPH reverse speeds.
- Cutting Deck: 50-inch AeroForce fabricated deck delivering a signature cut with fewer clumps and an even finish.
- Frame: 2" x 2" tubular steel frame with full e-coated corrosion defense system.
- Steering Control: Lap bars for precise zero-turn maneuvering.

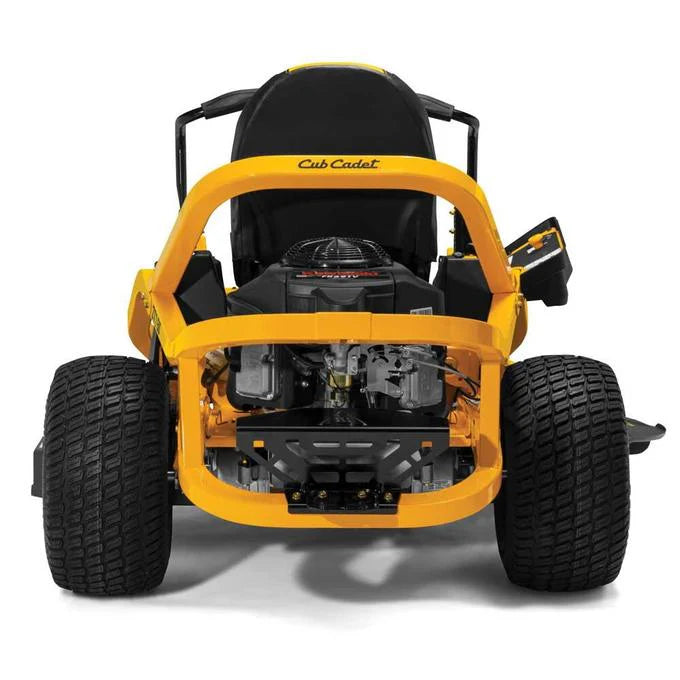

Engine Specifications
Brand | Kawasaki® |
---|---|
Model | FR Series (691V) |
Displacement | 726cc |
Output | 23 HP |
Starter Type | Electric |
Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
Cylinders | Twin |
Oil Capacity | 2.1 qt US (2 L) |
Charging System | 12 amp regulated |
Fuel Delivery | Carburetor |
Air Filter | Single element |
Governor | Mechanical |
Choke | Separate Choke |
Oil Filter | Yes |
Battery
- 210 CCA, AGM (Absorbent Glass Mat), 12V
Drive System
- Transmission: Hydro-Gear EZT 2200 hydrostatic
- Forward Speed: 7 MPH / 11.3 km/h
- Reverse Speed: 3.5 MPH / 5.6 km/h
Cutting Deck
- Cutting Width: 50 inches
- Deck Material: 11-gauge steel
- Deck Engagement: Electric PTO
- Blades: Three
- Deck Lift: Foot pedal with dial adjust
- Cutting Height Range: 1" - 4.5"
- Anti-Scalping: Three gauge wheels
- Deck Positions: 15
- Deck Wash: Not included
Chassis & Controls
- Frame: 2" x 2" tubular steel with corrosion protection
- Turning Radius: 0° (zero-turn)
- ROPS: No
- Rear Tow Hitch: Yes
- Steering: Lap bars
- Brakes: Disc
- Parking Brake: Integrated with lap bar
Comfort & Convenience
- Seat: 20" high-back
- Armrests: No
- Seat Adjustment: Knob
- Front Caster Suspension: No
- Dual LED Headlights
- Cup Holder
- Operator Presence System
Wheels & Tires
- Rear Tires: 20" x 10"-8"
- Front Tires: 11" x 6"-5"
- Tire Tread: Turf Master / Multi Trac
Additional Specifications
- Hour Meter: Available separately
- Mulch Kit: Available separately
Warranty
- Residential Warranty: 3-year unlimited hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime Limited
- Commercial Warranty: Not available
Specifications subject to change without notice. Actual products may vary in design, features, and safety features.
Horsepower ratings as required by Kawasaki, tested per SAE J1995 and rated per SAE J2723 standards.
